Description

• High-Speed Powerline Adapter: HomePlug AV2 standard provides high-speed data transfer rates of up to 1000 Mbps, supporting all your online needs anywhere in your home.***
• Gigabit Port: The gigabit port takes full advantage of your internet and provides a secure wired network you’re your desktop, smart TV or gaming console.
• Ultimate Reliability: Connect your favorite device or console with a gigabit Ethernet cord for more reliable performance at higher speeds.
• Plug. Pair. Play. : Set up your powerline in minutes, so you have more time enjoying a fast and reliable wired connection.
• Power - Saving Mode: Automatic power-saving mode reduces power consumption by 85% when a device is not in use.^
• Modern Design: The sleek and modern powerline unit is small enough to fit in the palm of your hand and uses high-quality components.
• Universally Compatible: Connect your powerline kit to any router, access point, or Ethernet switch to extend your network. *

Extend Reliable Gigabit Network through Electrical Wiring

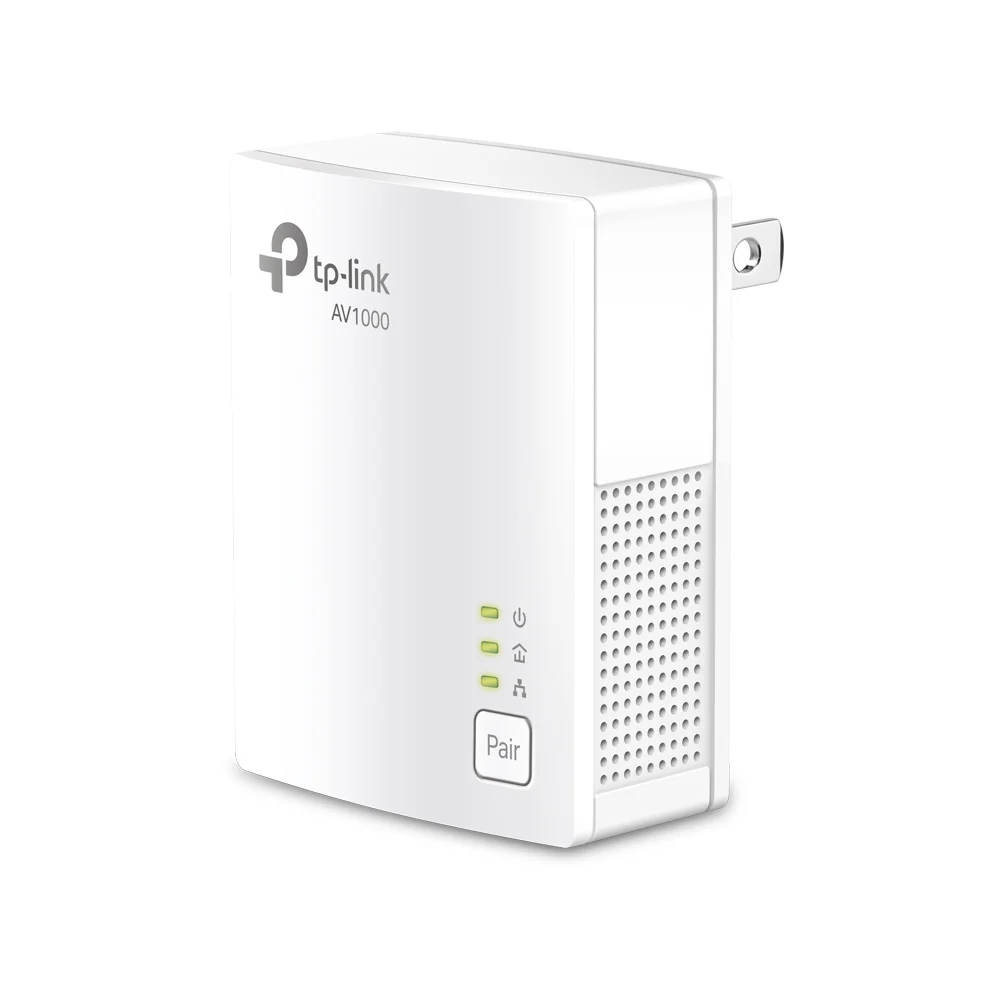

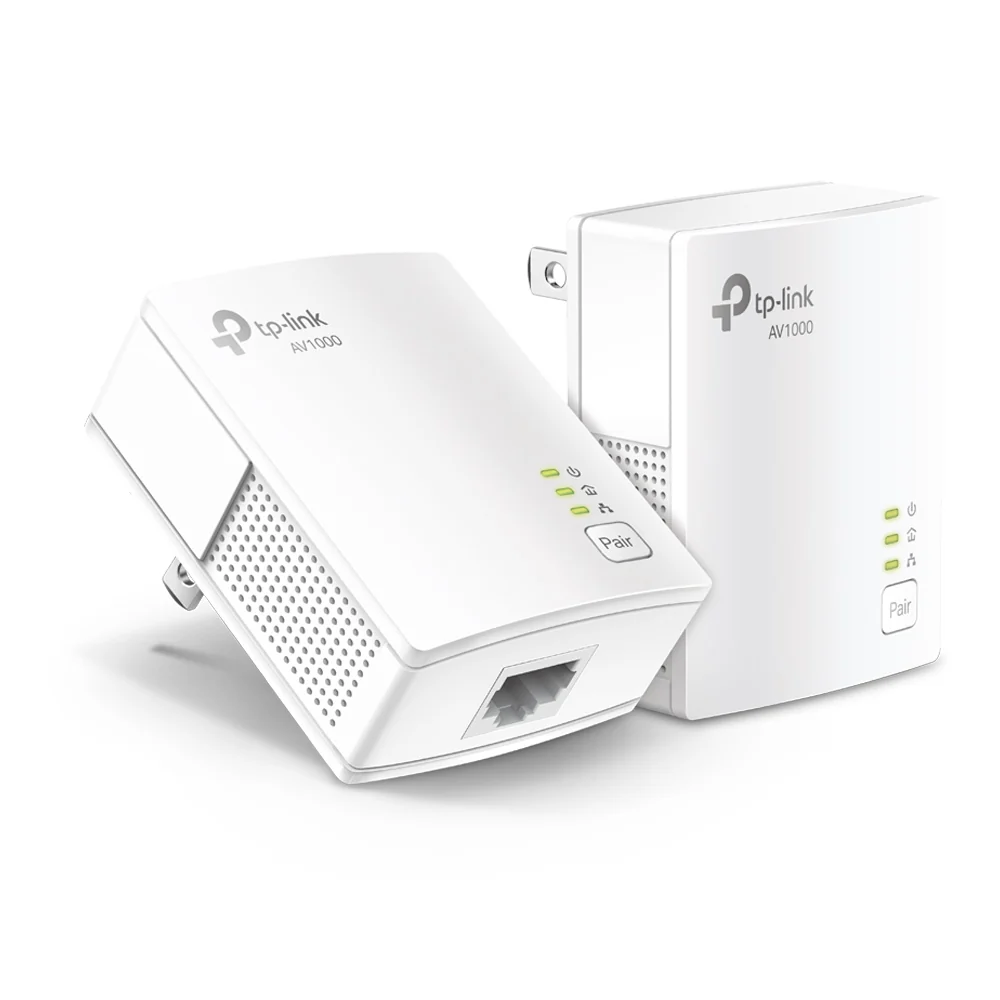

AV1000 Gigabit Powerline Starter Kit

TL-PA7017 KIT

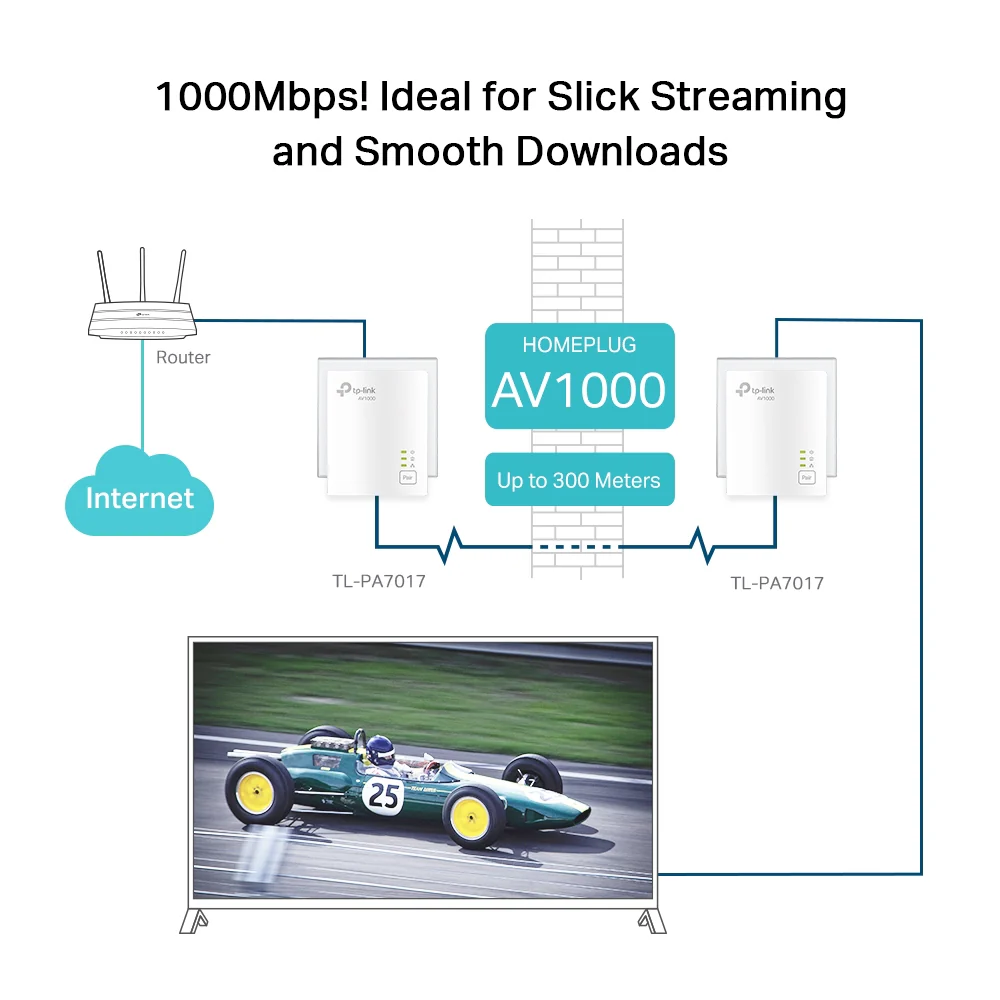

AV1000 Speeds and 300 Meter Range

Using advanced HomePlug AV2 technology, TL-PA7017 KIT ensures a stable and high-speed wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

RouterTL-PA7017TL-PA7017InternetHOMEPLUGAV1000Up to 300 Meters

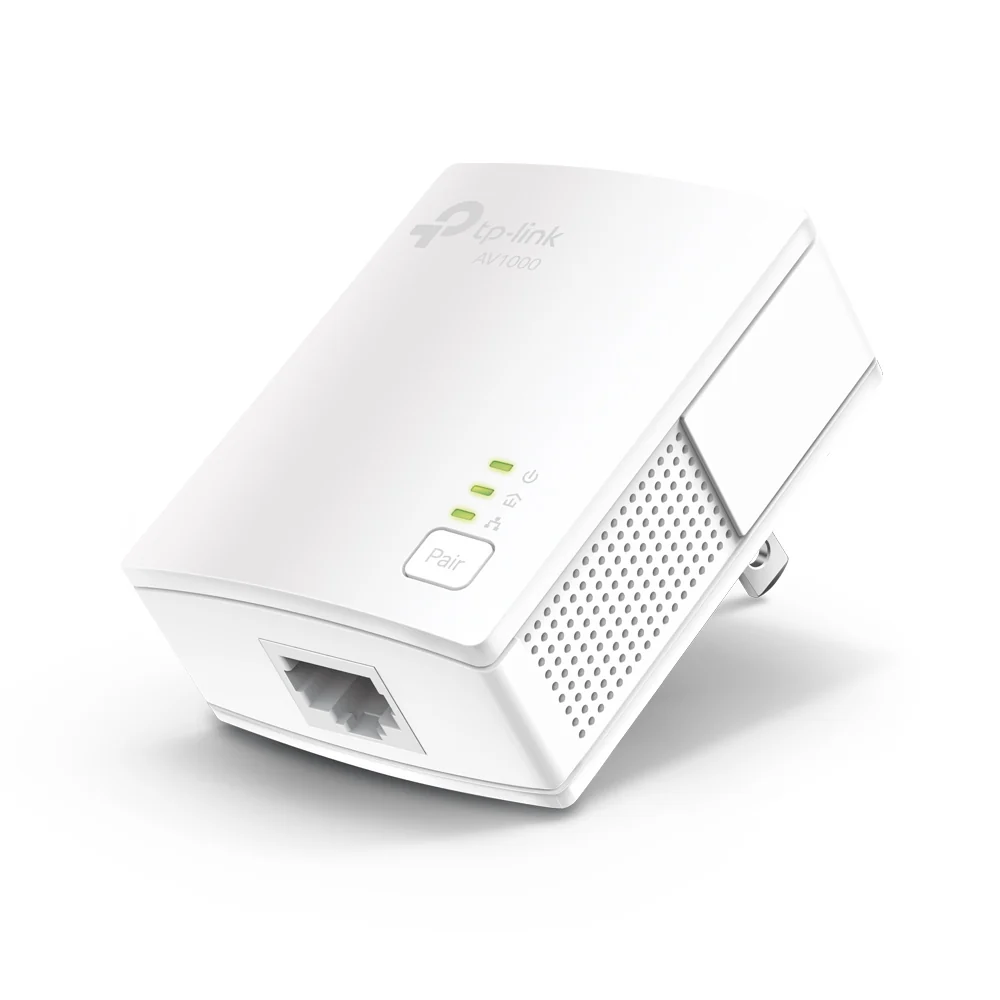

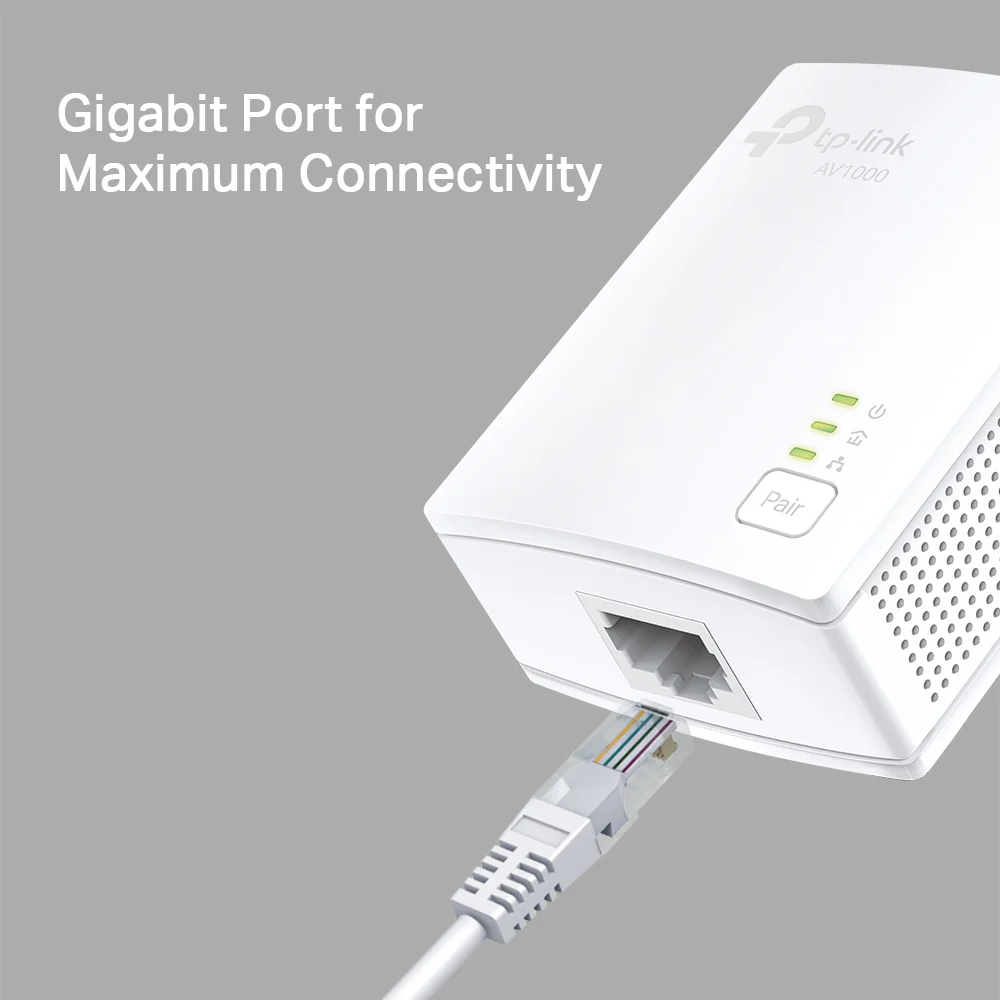

Gigabit Port for Maximum Connectivity

With a Gigabit Ethernet port, TL-PA7017 KIT allows users to connect a bandwidth intensive device to the Internet with high speeds and ensure the smooth transmission of Ultra HD video streaming. This makes the TL-PA7017 KIT the perfect home entertainment companion.

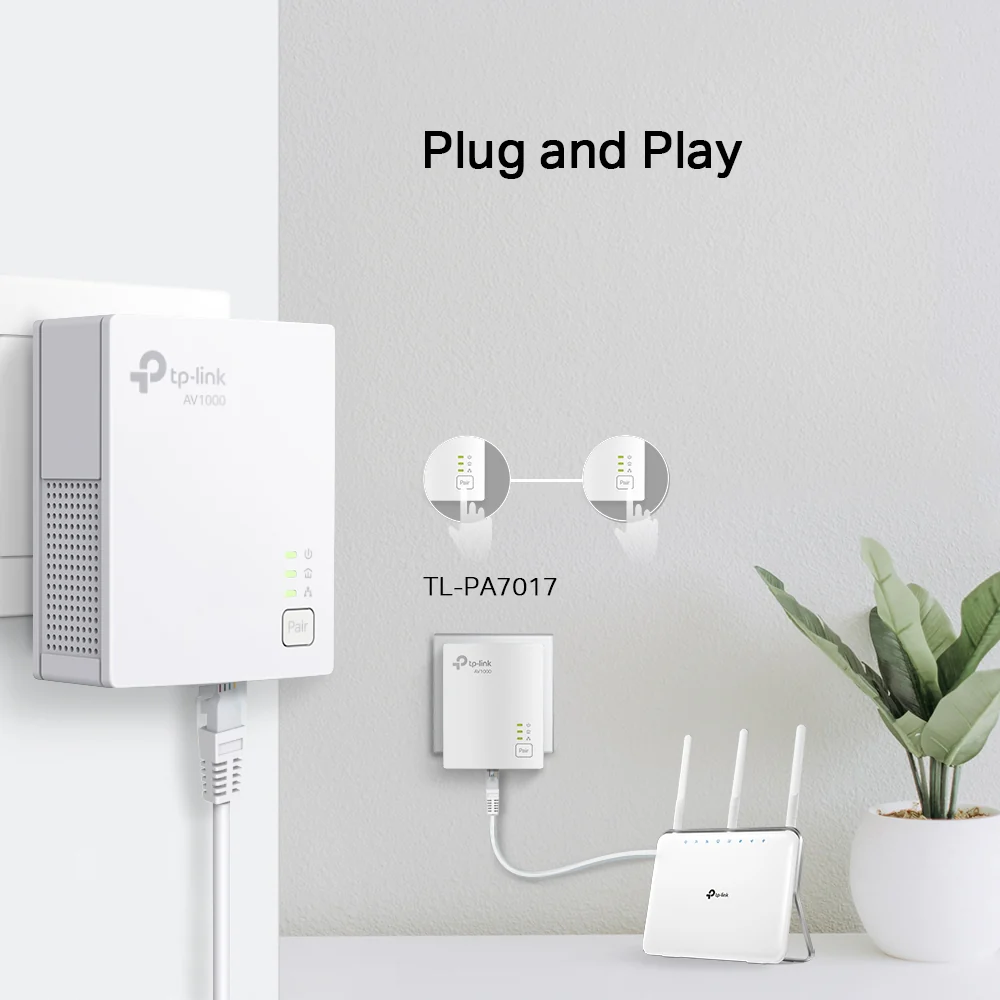

Plug and Play,

No Configuration Required

Connect a powerline adapter to the router, plug another powerline adapter into a wall socket in another room, and you’re done!

Pair for more security

Press the “Pair” button on each adapter to
create a more secure network.

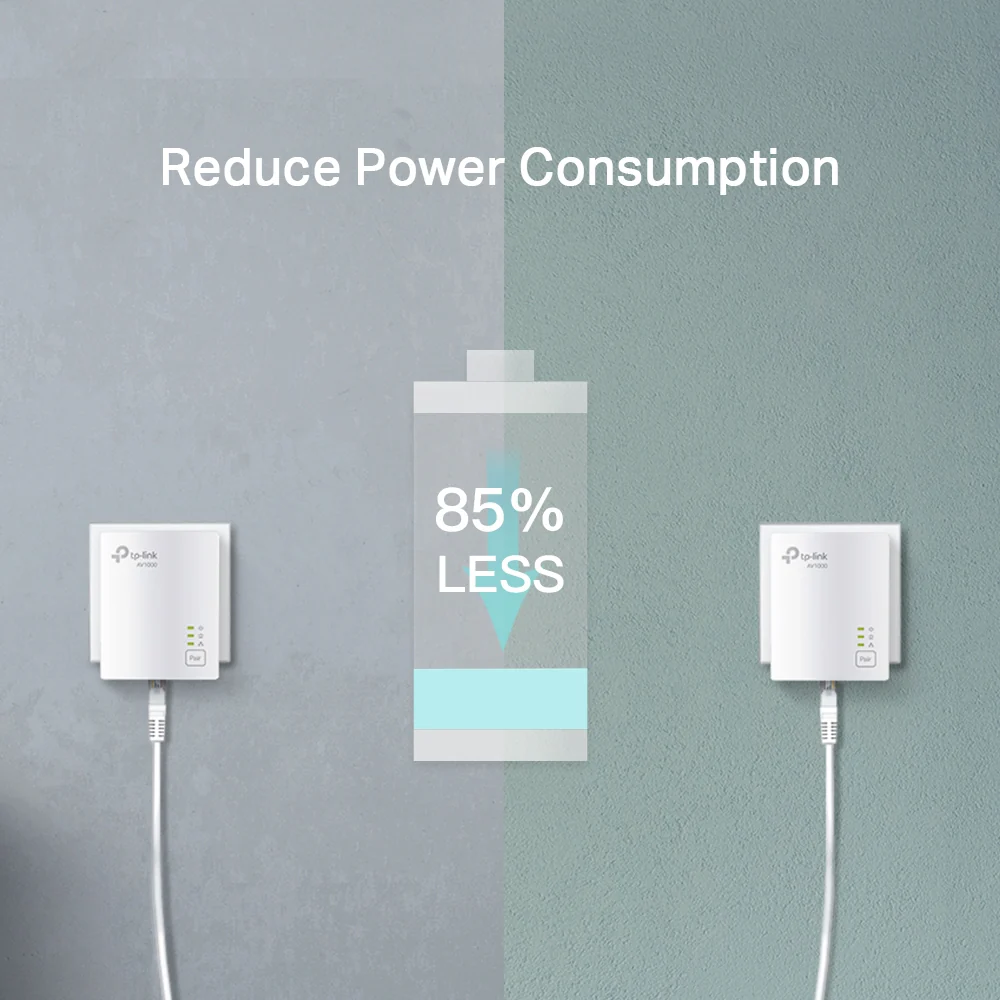

Reduce Power Consumption by Up to 85%

TL-PA7017 KIT, a new-generation of powerline adapter, with its practical design and sophisticated Power-Saving Mode, will automatically switch from its regular "Working" mode to "Power-Saving" mode reducing its energy consumption by up to 85%*^

*Actual data will vary in different network conditions and environments.

85%
LESS



Specifiations

HARDWARE FEATURES
Plug Type	EU, UK, US
Standards and Protocols	HomePlug AV2, HomePlug AV, IEEE 1901,  IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Interface	Gigabit Ethernet Port
Button	Pair/Reset button
Power Consumption	Maximum: 2.7W (220V/50Hz) Typical: 2.3W (220V/50Hz) Standby: 0.5W (220V/50Hz)
LED Indicator	PWR, PLC, ETH
Dimensions ( W x D x H )	2.6*2.0*1.1 in (65*52*28.5mm)
Range	300 Meters over electrical circuit

SOFTWARE FEATURES
Modulation Technology	OFDM (PLC)
Encryption	Powerline Security: 128-bit AES

OTHERS
Certification	CE, RoHS

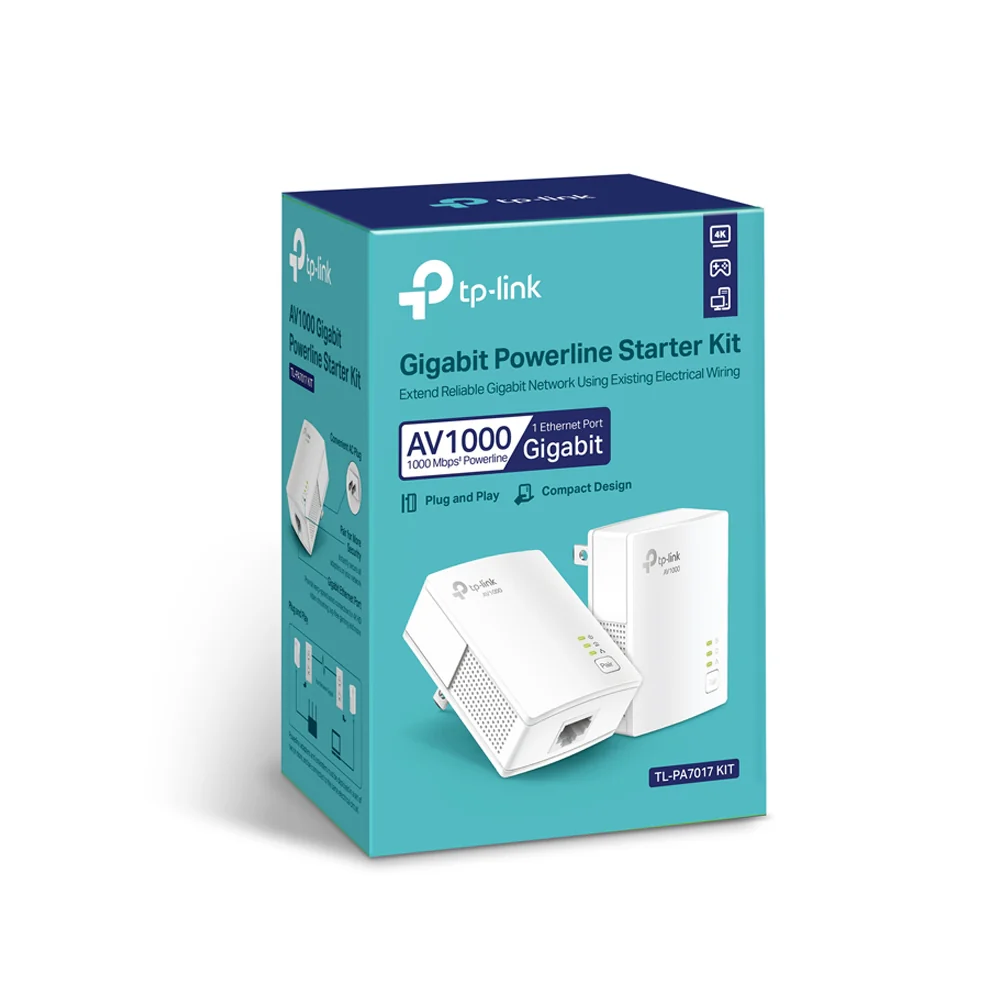

Package Contents	Powerline Ethernet Adapter 6.5 ft. (2 m) Ethernet cable (RJ45) Quick Installation Guide
System Requirements	Windows 2000/XP/2003/Vista, Windows 7/8/8.1, Mac, Linux
Environment	Operating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
