Product Description

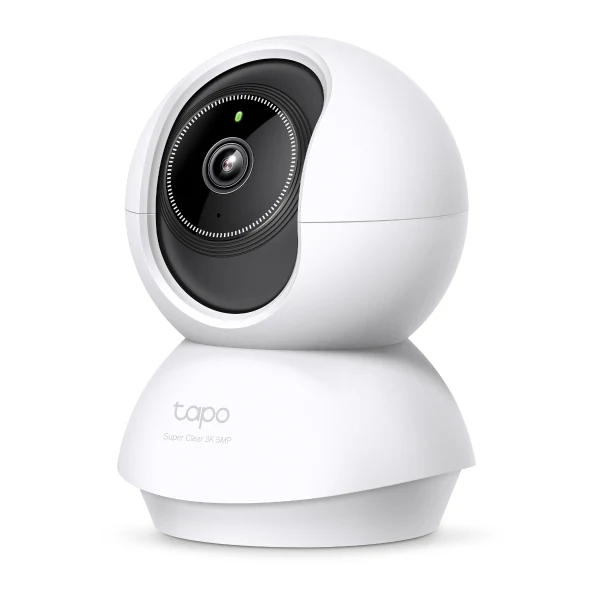

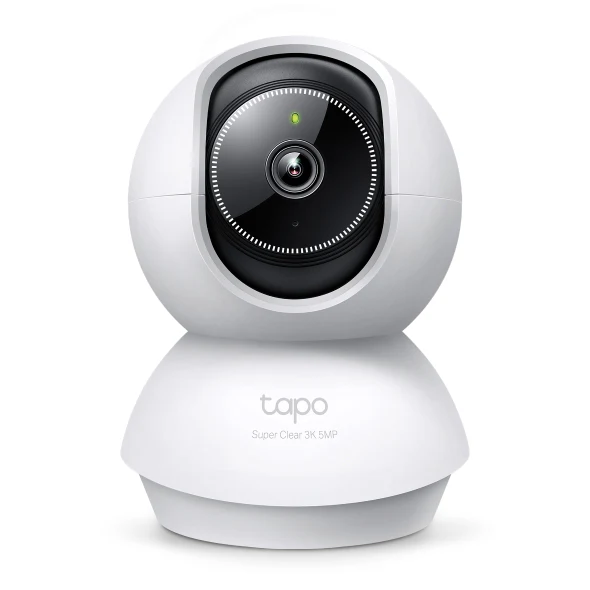

The Tapo C230 is an indoor pan/tilt AI home security Wi-Fi camera, not a bulb camera. It captures video at 3K 5MP resolution and features AI detection for people, pets, and vehicles, with a 360-degree horizontal rotation to cover an entire room.

Key Features:

• • High-Quality Video Recording: Capture every detail with exceptional clarity in 3K 5MP resolution.

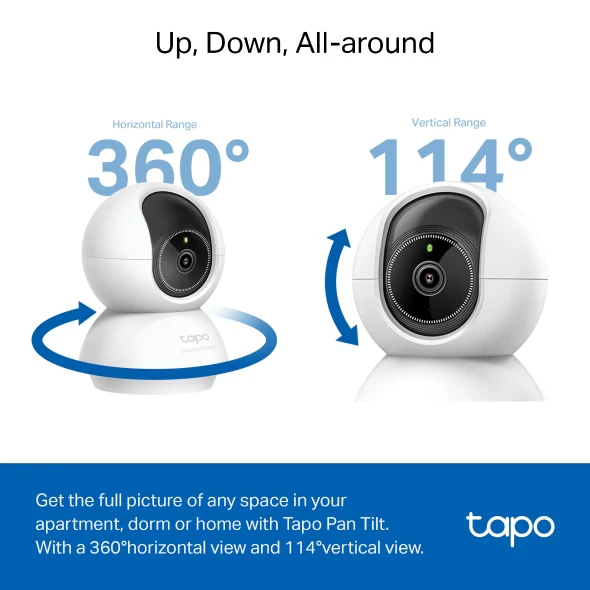

  • Wide Range of Movement: Enjoy a full 360º horizontal and 114º vertical range for pan and tilt, allowing you to cover more area.

  • Enhanced Night Vision: See clearly even in low-light conditions with advanced night vision that provides visibility up to 40 ft.

  • Smart AI Detection and Notifications: Benefit from smart AI technology that detects relevant events and sends you instant notifications.

  • Sound and Light Alarm: Scare away unwanted visitors using a sound and light alarm that triggers attention-grabbing effects.

  • Two-Way Audio: Enables communication through a built-in microphone and speaker

  • Safe Storage: Store footage directly on a microSD card with a capacity of up to 512 GB, ensuring safe and convenient storage.(microSD card purchased separately.)

  • Hands-Free Operation: Control the device using your voice with compatibility for Google Assistant and Amazon Alexa, freeing up your hands for other tasks. (Availability of Google Assistant and Amazon Alexa may vary based on language and country)

Specifications:

CAMERA
Image Sensor	1/3” Progressive Scan CMOS Starlight Sensor
Lens	Focal Length: 4 mm Aperture: F2.0 Field of View: 88° (Diagonal), 75°(Horizontal), 41°(Vertical)
Night Vision	850 nm IR LED (40 ft / 12 m)
Interface & Button	1× RESET Button 1× MicroSD Card Slot (Up to 512GB)
Pan/Tilt Range	Pan Mechanical Range: 340° (360° Pan Coverage) Tilt Mechanical Range: 69°

VIDEO & AUDIO
Maximum Resolution	3K 5MP (2880×1620 px)
Frame Rate	15/20/25/30 fps (Default 15fps)
Video Compression	H.264
Live View	Yes
Image Enhancement	3D DNR BLC
Audio Input & Output	Built-in Microphone and Speaker
Audio Communication	Two-Way Audio with Noise Cancellation
Siren Volume	99dB (Level measured at 4-inch/10-cm distance)

STORAGE
Local Storage	MicroSD Card Slot on Camera (Up to 512 GB) General Information about using MicroSD Cards >
Cloud Storage	Tapo Care Cloud Storage Services (Subscription required)

DETECTION and NOTIFICATIONS
AI Detection	Motion Detection Person Detection Line-Crossing Detection Tamper Detection BabyCry Detection Vehicle Detection Pet Detection Meow Detection Bark Detection Glass-Breaking Detection
Activity Zones	Yes
Output Notification	System Notification System Notification with Snapshot (Tapo Care Services)

NETWORK
Network Connectivity	Connect via Wi-Fi
Wireless Connectivity	IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
RTSP	Yes
ONVIF	Yes

SECURITY
Security	On-Device Machine Learning 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK

POWER
Power Source	9V DC Power Adapter
Input Voltage	100-240 V, 50/60 Hz
Output Voltage	9V, 0.6 A (DC Power)

GENERAL
Smart Integration	Google Assistant, Amazon Alexa
Mounting Options	Tabletop Ceiling-Mounted
Operating Temperature	0℃~40℃
Storage Temperature	-20℃~60℃
Operating Humidity	10%~90% RH, Non-condensing
Storage Humidity	5%~90% RH, Non-condensing
Dimensions ( W x D x H )	3.36 × 3.42 × 4.63 in (85.4 × 86.8 × 117.7 mm)
Package Content	Tapo C230 Camera Power Adapter Quick Start Guide Mounting Screws Mounting Anchors 　 Mounting Template Camera Base
Certifications	CE, FCC, RCM, WEEE, EAC
