Next-Generation Wi-Fi 6

Wi-Fi 6 technology allows you to game and stream 4K/8K videos at faster speeds and have less network congestion than ever before, ensuring the smoothest lag-free experience.

When used alongside a Wi-Fi 6 router, Archer TX20U Plus grants a more seamless experience with lower latency compared to Wi-Fi 5 technology.

*Please make sure to use a USB 3.0 port to ensure optimal performance.

Technical Specifications

• Lightning-Fast WiFi 6 - Stream flawless video with 1800 Mbps wireless speeds (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz)
• Flexible Dual Band - Ensure your PC has the best connection with 5 GHz and 2.4 GHz bands

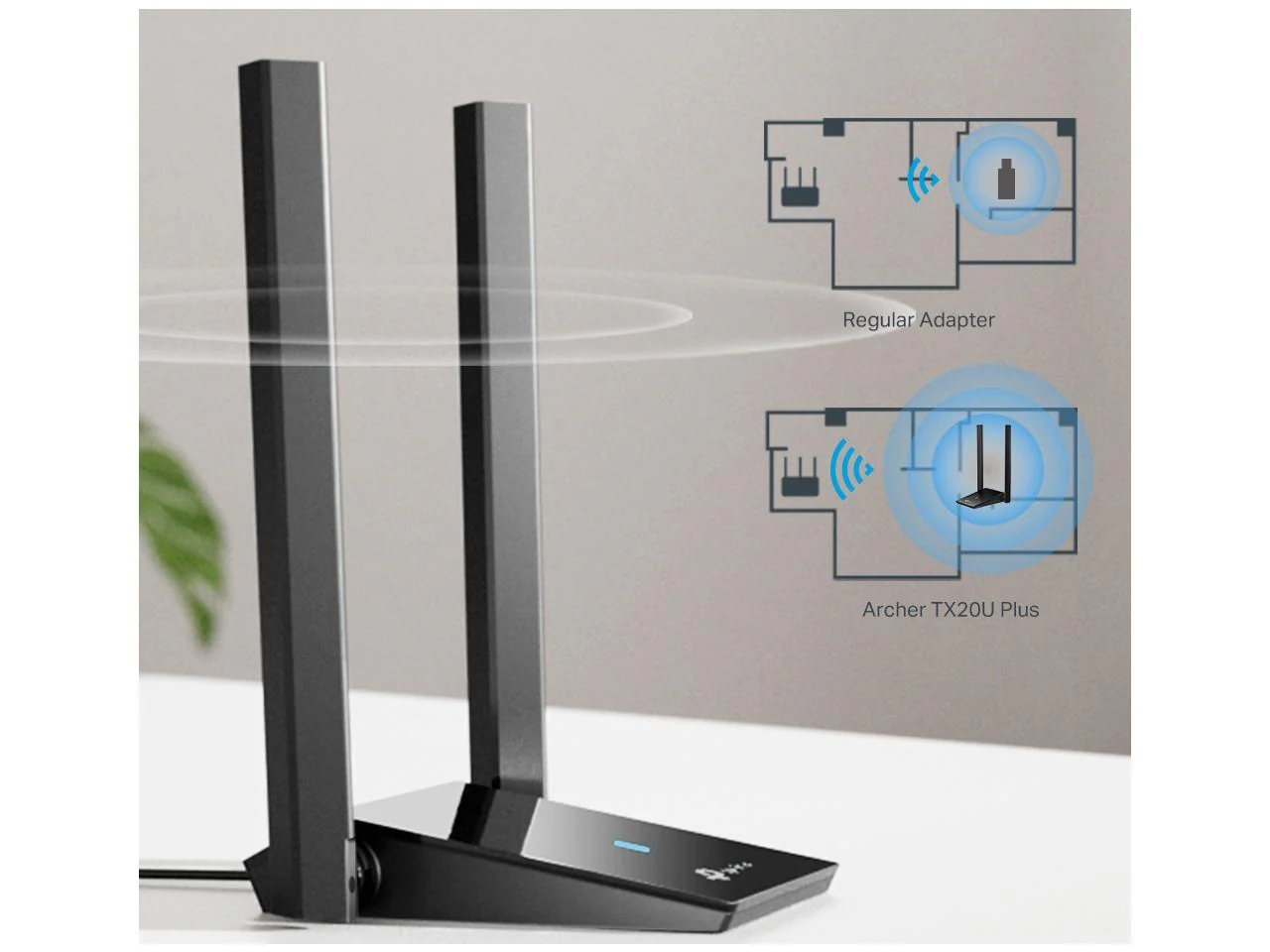

• Dual High-Gain Antennas - Connect from farther away with high-quality signals and transmissions
• MU-MIMO - Maintain high download and upload speeds even when other devices are eating up your bandwidth
• OFDMA - Reduce your latency for impeccable conferencing and gameplay on crowded networks
• SuperSpeed USB 3.0 - Up to 10× faster transfer speeds than USB 2.0
• Refined Security - Protect your personal data with the latest WPA3 encryption

Model

Brand	TP-Link

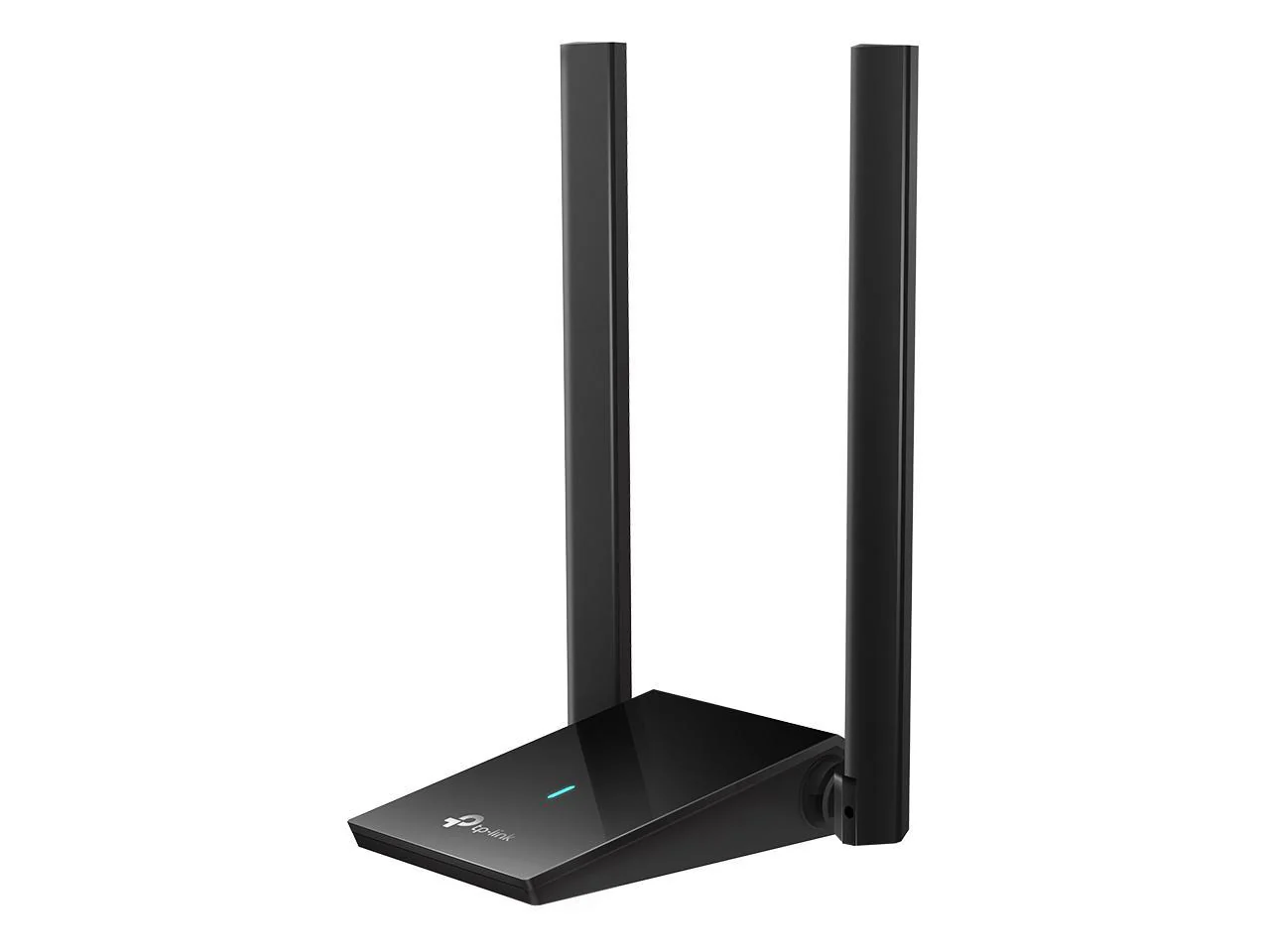

Model	Archer TX20U plus

Details

Color	Black
Standards	IEEE 802.11a/b/g/n/ac/ax
Wireless Data Rates	AX1800 / Up to 1.8Gbps
WiFi Generation	Wi-Fi 6
Security	WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK
Frequency Band	2.4 GHz / 5 GHz
LEDs	Status
Transmitted Power	5 GHz: 19dBm(FCC) /16dBm(CE) (EIRP) 2.4 GHz: 19dBm(FCC) / 14.5dBm(CE) (EIRP)
Antenna	2 x High-Gain Dual-Band Antennas
System Requirements	Supported operating systems include Windows 10, 11

Feature

Features

Lightning-Fast WiFi 6 - Stream flawless video with 1800 Mbps wireless speeds (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz) Flexible Dual Band - Ensure your PC has the best connection with 5 GHz and 2.4 GHz bands Dual High-Gain Antennas - Connect from farther away with high-quality signals and transmissions MU-MIMO - Maintain high download and upload speeds even when other devices are eating up your bandwidth OFDMA - Reduce your latency for impeccable conferencing and gameplay on crowded networks SuperSpeed USB 3.0 - Up to 10× faster transfer speeds than USB 2.0 Refined Security - Protect your personal data with the latest WPA3 encryption

Dimensions & Weight

Dimensions	3.30" x 6.20" x 0.76"

Environmental

Temperature	Operating Temperature: 0°C~40°C (32°F ~104°F)
Humidity	Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

Packaging

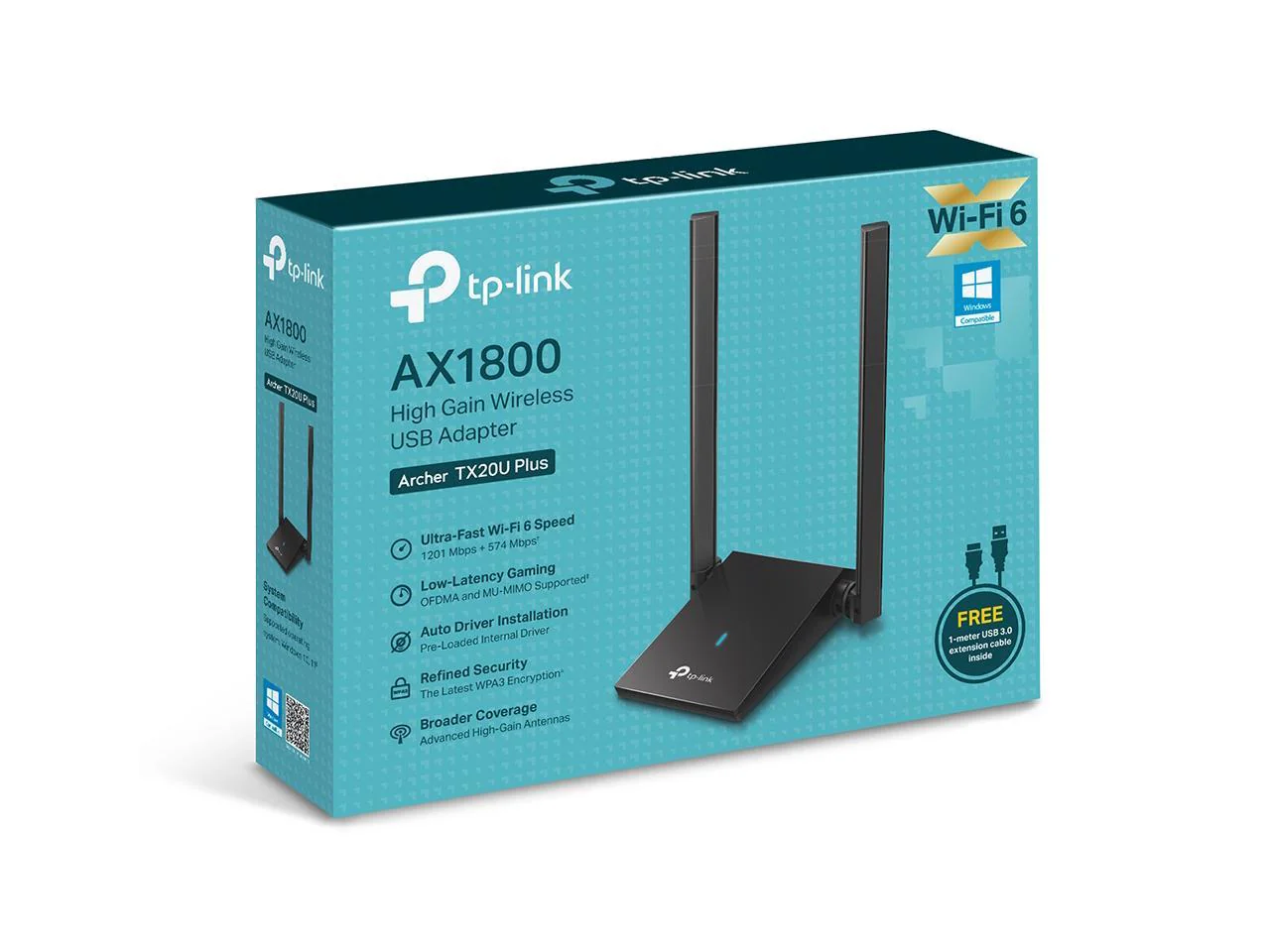

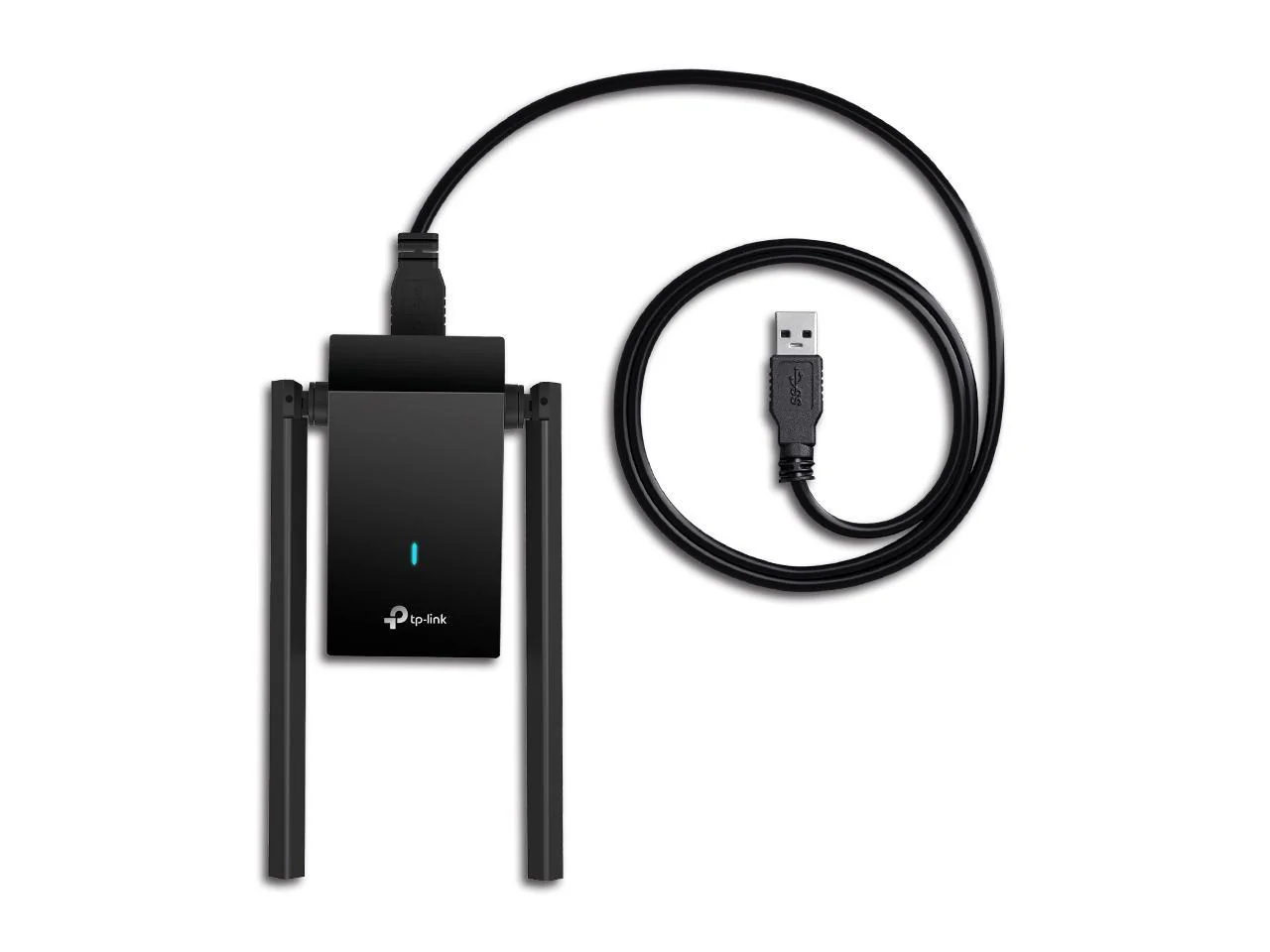

Package Contents	AX1800 Dual Antennas High Gain Wireless USB Adapter Archer TX20U Plus Quick Installation Guide 1-meter USB 3.0 Cable
