Timeshift support

Channel Recording & Timeshifting Simultaneously (optional)

Channel switching time less than 1 second

True-color, User Friendly On-Screen Display (OSD)

Full Picture In Graphic (PIG) function

Electronic Program Guide (EPG) for on-screen channel information

Subtitle supported

Teletext supported by VBI insertion and software emulation

Parental lock facility by channel and program event

Program and Channel information transfer from receiver to receiver

Multi-Language support

Specifications

Power Consumption in Stand-By: <0.5W

Tuner & Demodulation

Tuner Type: DVB-S / DVB-S2

Input Connector: F-type, Connector, Female

Signal Level: -65 to -25 dBm

LNB Power & Polarization: Vertical: +13V/+14V,

Horizontal: +18V/+19V

Current: Max. 400mA

Overload Protection

22KHz Tone Frequency: 22±1KHz

DiSEqC Control: Version 1.0, 1.1, 1.2, USALS

Demodulation: QPSK, 8PSK

Input Symbol Rate: 2-45 Mbps,

FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto

Tuner Type: DVB-T2 / DVB-C

Frequency Range: 48~862MHz

RF Input Level: -80dBm to -20dBm

Antenna power output: DC 5V at max 75mA, Overload protection

Demodulation: COFDM 1K, 2K, 4K, 8K normal and extended, 16K normal and extended, 32K normal and extended

Input Symbol Rate: 1.0 ~ 7.0Ms/s

Constellations: QPSK, 16QAM, 64QAM, 256QAM / Both rotated and non-rotated

Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128

Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6

System Resources

Main Processor: Dual Core 333MHz

Flash Memory: Serial Flash 8MB x 1

DDR RAM: 1333 1Gbx1

MPEG TS A/V Decoding

Transport Stream: MPEG-2, H.265

Input Rate: Max.120Mbit/s

Aspect Radio: 4:3, 16:9, Letter Box

Video Decoding: H.265/HEVC HD, MPEG-4/H.264 SP@L3 to ASP@L5, MP@ML, MP@HL, [email protected], [email protected]

Video Resolution: 720*480P/I, 720*576P/I, 1280*720p, 1920*1080i, 1920*1080p

Audio Decoding: MPEG-1/2,AAC-LC,HE-AAC,MP3,Dolby Digital plus

Audio Mode: Left / Right / Stereo/ Mono

Sampling Rate: 32, 44.1 and 48KHz

Power Supply

Input Voltage: 12V DC

Power Consumption: 18W Max

Stand-By Power Consumption: <0.5W

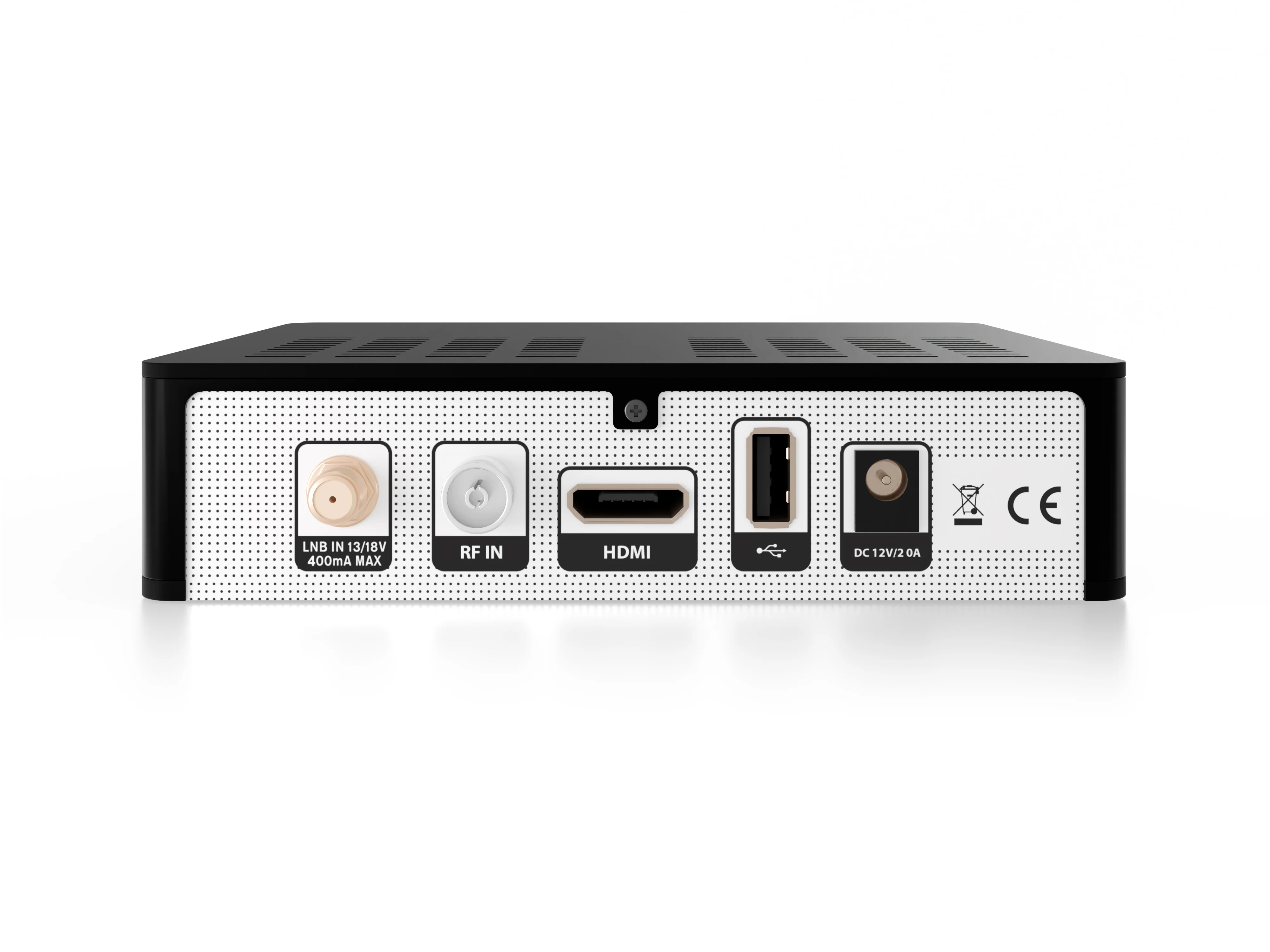

A/V & Data Input/Output

HDMI

USB: 1 x USB 2.0 slot

Physical Specifications

Size: 144mm*40mm*110mm

Net Weight: 0.25KG

Operation Temperature: 0°C~+45°C

Storage Temperature: -10°C~+70°C

Storage Humidity: 5%~95% RH (Non-Condensing)
